Series :
Armor-1335CRO-FPD3
Description :

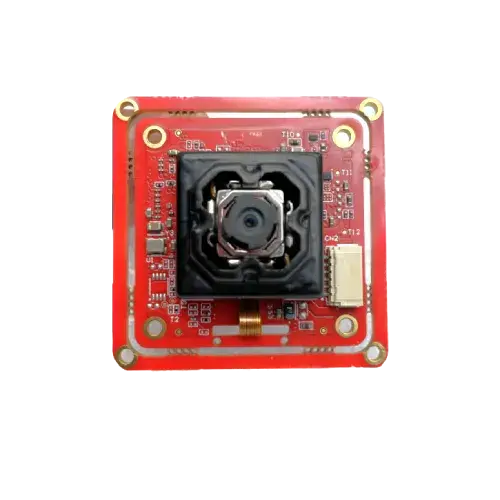

Vadzo Armor-1335CRO-FPD3 is a 4K Autofocus FPD-Link III Camera with optical image stabilization (OIS). The camera is based on Onsemi AR1335 Sensor coupled with high-performance ISP. The camera delivers max resolution of 13MP and Video streaming of 720p, 1080p, and 4K. Applicable in use cases such as autonomous guided vehicles, drones, UAVs, sports camera, digital signage camera, retail AI camera, medical device camera, facial recognition camera, etc
OUT OF STOCK
(Will be available in 12 weeks)
Mentioned Price is Applicable for orders above 1k unit
The shipment will be delivered in 12 weeks.
AR1335 OIS 4K Autofocus FPD-Link III Camera
Armor-1335CRO-FPD3
General Information
Product Family Armor Series
Camera Model Vadzo Armor-1335CRO-FPD3
Sensor
Sensor AR1335 CMOS Sensor from Onsemi
Sensor Format 1/3.2"
Pixel Size 1.1 µm x 1.1 µm
Max Resolution 13MP - 4208(H) x 3120(V)
Shutter Rolling Shutter
Chroma Color
Camera
Optics VCM Based Autofocus with Focus Range of 100mm to Infinity
Lens FOV 50 DFOV
Interface FPD-Link III
Connector Standard FAKRA Connector
GPIO Connector No
Power Power over Coax
Operating Temperature -40⁰C to 85⁰C
Dimension Two Boards: 38mm (L) x 38mm (B)
Weight 25 Grams (Without Lens)
OS Supported Windows and Linux
Conformity RoHS 3, REACH
Price Details
UNIT PRICE
NOT INCLUSIVE
$285.00
Lens & Cable
QUANTITY
1 - 249
1000 - 4999
$175.00
$235.00
Lens & Cable
Lens & Cable
250 - 999
Login to Download Datasheet
Datasheet
Download Initiated!
You can download again after 60 seconds.
CAD File
Download Initiated!
You can download again after 60 seconds.
Downloads
Armor-1335CRO-FPD3
Vadzo team shall be able to assist you with the details on this. Reach Vadzo Team for customization
camera can be customized to meet your needs.
1
Form factor modifications and Board redesigns.
2
Firmware modifications to incorporate custom features.
3
Design & Integration of NIR & Color LED Array Boards.
4
Design & Integration of Microphones & Speakers.
5
Design & Integration of Advanced Sensors: ToF Sensor, mmWave Radar, IMU.
6
Lens Holder Modifications & Electro-Mechanical Lens Filter Control.
7
Enclosure Design & Manufacturing: IP-Rated and Non IP-Rated.
Accessories
What type of image stabilization does this camera feature?
What is the maximum resolution the camera can support?
Can I disable Optical Image Stabilization (OIS)?
What are the video formats supported by the camera?
What are the image formats supported by the camera?
Does the camera come with lens?
Can I customize the autofocus module to support different flex lengths, different FOVs, or different sensor orientations?
How to power up the camera?
What is the maximum cable length supported?
Are there any Minimum Order Quantities for the camera?
