The camera is a UVC-compliant 5MP low light USB camera based on AR0522 CMOS sensor from Onsemi
  • The camera is a UVC-compliant 5MP low light USB camera based on AR0522 CMOS sensor from Onsemi
  • The camera is a UVC-compliant 5MP low light USB camera based on AR0522 CMOS sensor from Onsemi
SKU: Falcon-522CRS

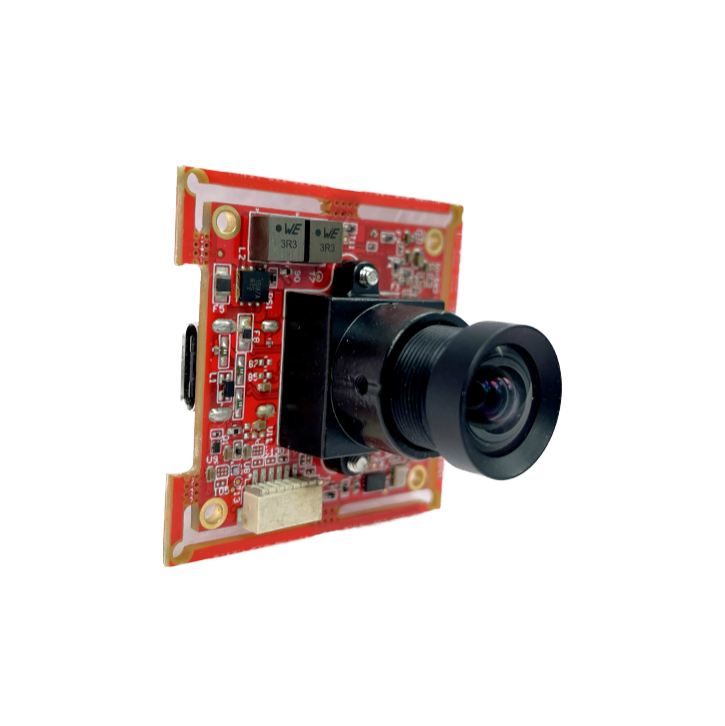

AR0522 Color 5MP Low Light USB 3.0 Camera

PriceFrom $245.00

The camera is a UVC-compliant 5MP low light USB 3.0 camera based on AR0522 CMOS sensor from Onsemi integrated with an on-board ISP that supports key features like  Autoexposure, Auto White Balance, and so on. The camera supports image capture in BMP and JPEG format and video streaming in BMP and JPEG format. The camera works in USB 3.0 Super Speed mode and USB 2.0 High Speed mode.



Click Here to View Detailed Specifications of Vadzo AR0522 Color 5MP Low Light USB 3.0 Camera.



Camera Overview

  • Sensor: 1/2.5” Sensor with 2.2um pixel size. Based on BSI 2 Technology.
  • Resolution: VGA, HD, Full HD, and 5MP (2592 x 1944).
  • Lens Details: S Mount (M12 Standard).
  • Dimensions: 38mm(L) x 38mm (B) convertible to 32mm(L) x 32mm(B).
  • USB Connector: USB Type C Connector, USB 3.1 Gen 1 Interface.
  • Conformity: RoHS 3 Compliant, REACH Compliant, UVC Compliant.
  • Cable Length: USB camera that can support long-distance cable of up to 30m.



Application Areas:

  • Medical Devices Camera: Ophthalmology Camera, Dermatoscope Camera, Digital Microscope Camera, Pathology Camera.
  • Kiosk Camera: Document Scanning, OCR, Barcode Reading, Facial Recognition, Demography Analysis.
  • Smart Surveillance Camera: Facial Recognition, Day/Night Video Recording, Smart Parking, Pedestrian Safety.
  • Warehouse Robotics Camera: Object Scanning, Document Scanning, OCR, Obstacle Detection.



Key Features

  • Auto Control: Auto-Exposure, Auto White-Balance, Auto-Gain.
  • Imaging Performance: Excellent Color Reproduction, Good Low-Light Sensitivity, Good NIR Sensitivity, HDR.
  • Binning & Cropping to acheive custom resolutions and frame rates.
