As image technology advances, the MIPI CSI-2 (Camera Serial Interface 2) standard stands out as a model of excellence in the field where accuracy, functionality, and economy come together. From mobile innovations to automotive advancements, industrial automation, healthcare diagnostics, and surveillance systems, the impact of MIPI Camera with CSI-2 interface resonates across a spectrum of applications, driving innovation, efficiency, and reliability in imaging technology. In this blog, we delve into the underlying principles, where concepts such as data lanes, virtual channels, clocking, synchronization, and dynamic lane management converge to facilitate efficient and robust data transmission.
What is MIPI Camera? and How does MIPI Camera Work?
A MIPI camera refers to an advanced imaging device designed to comply with the MIPI CSI-2 (Camera Serial Interface 2) standard, characterized by high-performance data transmission between the camera sensor and a host processor. MIPI cameras leverage the advanced capabilities of MIPI CSI-2, including high-speed data transmission, low-latency signaling, configurable lane speeds, robust error detection/correction mechanisms, and synchronized clocking for precise data synchronization.
The four main key technical components of MIPI cameras are:
Camera Sensor: The camera sensor is the core component that captures light and converts it into digital image data. It comprises photosensitive pixels arranged in a grid pattern, with each pixel capturing the light intensity and color information.
MIPI CSI-2 Interface: The MIPI CSI-2 interface functions as a communication link, facilitating the high-speed serial data transmission from the camera sensor to the ISP and then to the host processor. It provides bandwidth-efficient connectivity for transferring image and video data with low latency and high reliability.
Image Signal Processor (ISP): The ISP is responsible for processing raw image data from the camera sensor. It performs tasks such as debayering, color correction, noise reduction, white balance adjustment, exposure control, and image enhancement to produce high-quality images and videos.
Clock Signals: Embedded clock signals within MIPI CSI-2 ensure precise data timing and synchronization between the camera sensor and host processor, essential for real-time imaging.
Discover more about the IMX291 Low Light 1080P MIPI Camera, a versatile choice for various low-light applications.
Features of MIPI CSI-2 Interface
At the heart of MIPI cameras lies the MIPI CSI-2 interface, a high-speed serial interface that facilitates the transmission of image and video data from the camera sensor to the processing unit. The MIPI CSI-2 standard offers several key advantages that make it a preferred choice for next-generation imaging systems with MIPI Cameras:
Efficient data transmission
MIPI CSI-2 interfaces offer high-speed data transfers, achieving bandwidths of multiple gigabits per second (Gbps). This high throughput capability enables the transmission of uncompressed high-resolution images and videos at high frame rates in formats such as 4K and even 8K resolutions. The interface's high data rate is achieved through efficient differential signaling and parallelism across multiple data lanes, making it suitable for demanding applications like real-time video streaming and high-speed image capture.
Low Power Consumption
MIPI CSI-2 utilizes differential signaling, clock gating, and power gating. LVDS minimizes power consumption by reducing signal swing and enabling high-speed data transmission with lower voltage differentials. Clock gating and power gating techniques selectively disable or reduce power to inactive circuitry and unused data lanes, conserving energy and extending battery life in mobile and battery-operated devices.
Scalability and configurability
MIPI CSI-2 interfaces support varying numbers of data lanes (typically 1 to 4 lanes) and lane speeds, allowing the interface's bandwidth to match specific sensor resolutions, frame rates, and color depths. This configurability ensures optimal performance across a wide range of camera sensors, from low-resolution sensors in IoT devices to high-resolution sensors in professional cameras. Additionally, it supports multiple virtual channels (VCs), enabling concurrent transmission of different data streams over a single physical link, enhancing system flexibility and resource utilization.
Integrated Clocking and Synchronization
MIPI CSI-2 interface integrates embedded clock signals (DCM/PLL-based), data lane alignment, and frame-level synchronization. The embedded clock signals ensure accurate data sampling and timing alignment between the camera sensor and the host processor, minimizing clock skew and jitter. Data lane alignment mechanisms synchronize parallel data streams across multiple lanes, maintaining data integrity and reducing latency. Frame-level synchronization facilitates precise frame and packet timing, enabling seamless integration of multiple cameras or sensor arrays in synchronized capture scenarios, such as stereo vision, depth sensing, and multi-camera configurations.
Industry Standard and Interoperability
Its standardized protocol, electrical characteristics, and physical layer specifications ensure interoperability and compatibility across a diverse ecosystem of MIPI-compliant components. This industry-wide adoption simplifies integration efforts, accelerates time-to-market for new products, and promotes a robust ecosystem of MIPI-compatible hardware and software solutions, including development tools, drivers, and middleware.
Enhance Your Vision: Discover Our Diverse Camera Range!

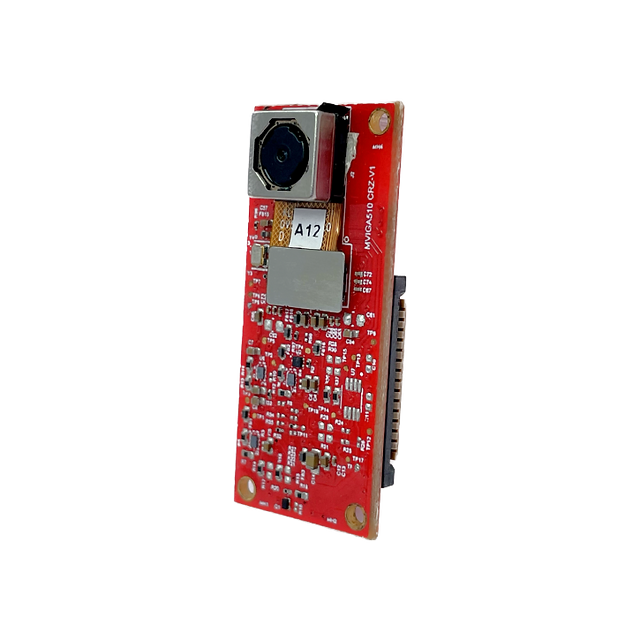

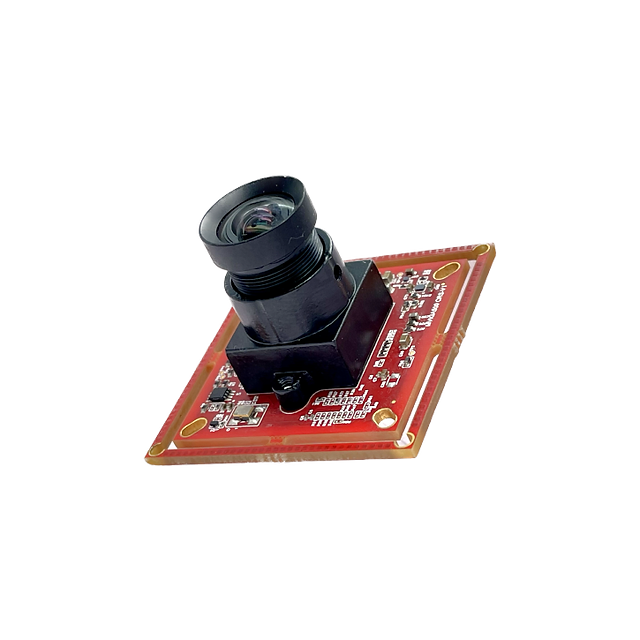

IMX291 2MP MIPI Fixed Focus Camera OV5640 5MP MIPI Auto Focus Camera AR1335 13MP MIPI Fixed Focus Camera
Driving Growth with MIPI Camera Technology
From a business perspective, the key technical components of MIPI cameras underscore their pivotal role in driving innovation and competitiveness in the imaging industry. Their efficient data transmission, power optimization, and advanced features drive product differentiation, customer satisfaction, and market competitiveness. Embracing MIPI camera technology enables businesses to stay at the forefront of imaging advancements, capitalize on emerging market trends, and deliver cutting-edge solutions that meet the evolving demands of consumers and industries.
